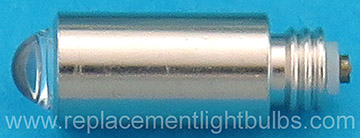

WA-03100-U 3.5V
03100 Lamp

Carley $5.99 Each

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Wattage: 2.5W, 2.5 Watt Watts
Amperage: .72A .72 Amps
Voltage: 3.5V, 3.5 Volt Volts
Base: Screw, 48 Grooves/Inch
Glass: TL1-1/2
Filament: C-2R
Average Life: 20 Hours
Maximum Overall Length: MOL 20mm
Maximum Overall Diameter: MOD 6mm

Nickel Plated
Xenon Gas

Alternate Part Numbers: Welch Allyn CA994 Carley 994 CL994 3.5V .72A 2.52W WA-31 8000017 99-5014 20 Hours CESS-2976-00 Halogen 03100-U Otoscopes 25000, 25200, 20000, 25020, 21700, 20200, 20202, 25270, 25070, 97110, 97100, 97150, 92800 and 22811 Illuminators, Transilluminators 27000, 27050, 26500, 26530, 41100, 43300 Tongue Blade Holder 18300 BiValve Nasal Speculum 26030 WA-03100-U, WA-03100, 6783-03100-U, 5932, 543100, 566-9758, 5669758

Autoclave, EKG, ECG, MedSupplier, Medical Supply, Medical Supplies, Medical Equipment, Spirometer, Spirometry, Sterilizer, Exam, Table, Ritter, Welch Allyn 3.5v Halogen Lamp (Model 03100-U), WA-03100-U, 03100U, Bulb and illumination replacement parts, Medical Diagnostic Accessories, Health Care Supplies, Medical Equipment

For use with Welch Allyn Illumincator Models (obsolete): 26500; (current): 27000, 27050, 26530
For use with Welch Allyn Tongue Blade Holder Models: 18300
For use with Welch Allyn Bivalve Nasal Speculum Models: 26030
For use with Welch Allyn Otoscope Models (obsolete): 25000, 25200; (current): 20000, 25020, 21700, 20200, 20202
Replacement bulb fits number 20000, 25020, 21700, 20200 and 20202 heads

Otoscopes-20000, 25020, 25020A, 21700, 20202, 25000 & 25200
3.5v Handle Adapter-73500
Tongue Blade Holder-28100
Illiminators & Transilluminators-27000, 27050, 26530 & 26500
Nasal Illuminators 26535
Complete Nasal Illumniator 26538
3.5 V Halogen Fiber-Optic Finnoff Transilluminator 41100, 41101 Finnoff Ocular Transilluminators
3.5V Fiber-Optic Anoscope
BiValve Nasal Speculum: 26030, 26035
HPX Halogen Otoscope bulb
25270, 25070, 97110, 97100, 97150, 92800 and 22811
Welch Allyn 97200-C
Welch Allyn 74710
21700 Operating Otoscope
20200, 20201, 20250, 20251 Pneumatich Otoscope
43300 3.5V Curved All-Purpose Transilluminator
26038 Bivalve Nasal Speculum
27000 Complete Larynx Illuminator
27050 Complete Nasopharynx Illuminator
27070 Fiber Optic Illuminator
25020, 25021 Diagnostic Otoscopes
26038 Bivalve Nasal Speculum With Illuminator

03100 Equipment

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
