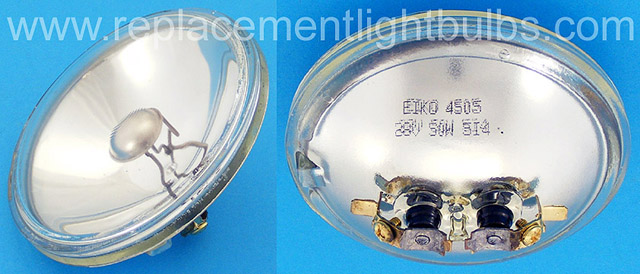

GE 4505 28V 50W PAR36 Aircraft Navigation Sealed Beam Lamp
GE 4505 28V 50W PAR36 Aircraft Navigation Sealed Beam Lamp Replacement Light Bulb

Eiko $5.48 Each

*GE $7.53 Each

*Wagner $6.00 Each

*27 GE and 1 Wagner Remaining In Stock

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 50W, 50 Watt Watts
Voltage: 28V, 28 Volt Volts for 24V Systems
Glass: PAR36, PAR 36, 4.5" Diameter
Base: GE Screw Terminals, Eiko MP Screw and Slip-On Terminals
Filament: CC-6, CC6, Shielded
Average Rated Life: 400 hours
Technology: Incandescent
Beam Spread: Horizontal 11° - 10 %
Beam Spread: Vertical 5° - 10 %
Max. Beam Candlepower (MBCP) (MAX) 45,000
Maximum Overall Length (MOL) 2.75"/69.8mm
Bulb Diameter (DIA) 4.5"/114.3mm

Alternate Part Numbers: GE 24638, 24640, Eiko 46056, Satco S4319, ZB-285, SB-4505, S4505, 11329

Aircraft Navigation Spotlamp

graphicpar36-1.gif     graphic2screw-1.gif

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
