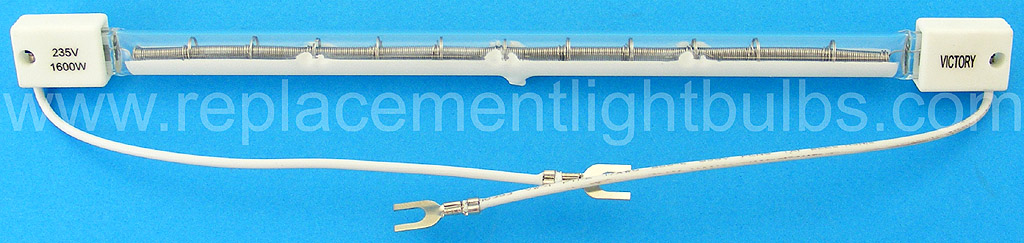

Victory 64231652 14135Z/98 QH1600T3-235V SK15 1600W Quartz Heater Lamp
Victory 64231652 14135Z/98 QH1600T3-235V SK15 1600W Quartz Heater Lamp Replacement Light Bulb

Approximate Length 8-13/16""

Victory $18.00 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 1600W, 1600 Watt, Watts
Voltage: 235V, 240 Volt, Volts
Base: SK15 Flexi Ceramic Base with 5.5" PTFE 17AWG Insulated Wire Leads with M4 Fork Terminal
Glass: T3 Clear, 10mm Diameter, White Reflector
Maximum Overall Length: MOL 8.875", 226mm
Heated Length: 6.6"
Color Temperature: 2700°K, 2700K
Burn Position: Universal
Average Rated Life: 5000 Hours
Filament: C-8
Infrared Medium Wave Quartz Heat Lamp
Flash Cure Infra-Red

64231024 Graphic

A = 222±2mm
B = 182mm Nominal
C = 140±5mm
E = 15.1mm
F = 10.5mm
G = 435mm Nominal
H = 5mm Maximum

Typical Use: Drying Water Based Inks, Offset Litho, Wood Treatment, Wallpaper, Shrink Wrap, Blow Moulding, Thermoforming, Screen Printing on Textiles

Alternate Part Number: QH1600W-235V-SK15, Victory 64231652, Philips, Phillips, Dr. Fischer 14135Z/98, Ushio QIH230-1600/ZH, Toshiba JHC 235V 1600W 155BfH1

SIG PET Blow Moulding

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
