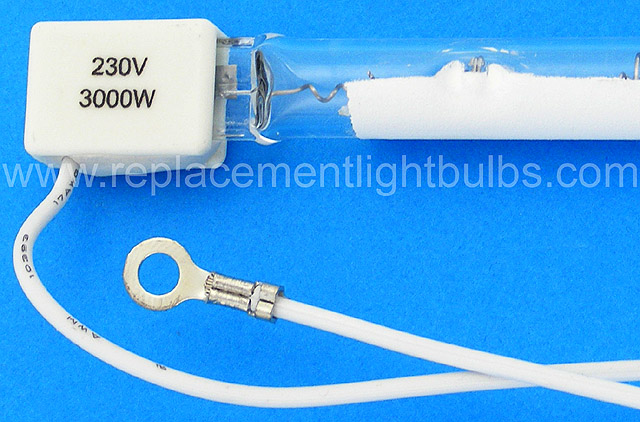

QH3000T3/RFL/SK15-230V 3000W 6423305D Reflector Quartz Zone Heater Lamp
QH3000T3/RFL/SK15-230V 3000W 6423305D Reflector Quartz Zone Heater Lamp Replacement Light Bulb

Measured Length 30-7/8" with 22" Leads with Ring Connectors

63 In Stock

Victory $36.53 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 3000W, 3000 Watt, Watts
Voltage: 230V, 230 Volt, Volts
Base: SK15 Flexi Ceramic Base with 22" 17AWG PTFE Insulated Wire Leads with Crimp M4 Ring Terminals
Glass: T3.5 Clear with White Reflector, 10.8mm Diameter
Measured Length: MOL 30-7/8", 784.23mm
Maximum Overall Length: 785.5mm
Measured Heated Length: 28.25", 718mm
Minimum Heated Length: 715mm
Color Temperature: 2300°K, 2300K
Burn Position: Universal
Average Rated Life: 5000 Hours
Filament: CC-8
Infrared Quartz Heat Lamp

64231024 Graphic

A = 785.5±2mm
B = 745mm Nominal
C = 560±5mm
E = 15.1mm
F = 10.5mm
G = 715±5mm
H = 5mm Maximum

Typical Use: Plastic Bottle Manufacturing, PET, Blow Moulding, PET/ALL, SIPA

Alternate Part Number: QH3000W-230V-SK15, Victory 6423305D, IFR, QIR, QH3MT3, QIR230V-3000W

Seidel Blowing Machine

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
