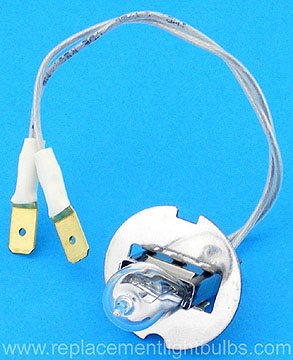

64317 6.6A 45W PK30d Lamp
64317 6.6A 45W Lamp

Osram $17.55 Each

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Watts: 45W, 45 Watt Watts
Volts: 6.8V, 6.8 Volt Volts
Amperage: 6.6A, 6.6 Amps Amperes, Current Controlled
Average Life: 1500 Hours
Lumens: 800 Lumens
Filament: 1.4mm x 3.6mm
Maximum Overall Length: 28mm From Plate to Tip of Glass
Minimum Length From Plate to the End of the Leads: 27mm
Light Center Length: 16mm, From Plate to Center of Filament
Glass: T4, 13.5mm
Base: PK30d, Two Male Leads
Burn Position: S90, Base Down ±90°

Typical Use: Airport, Airfield

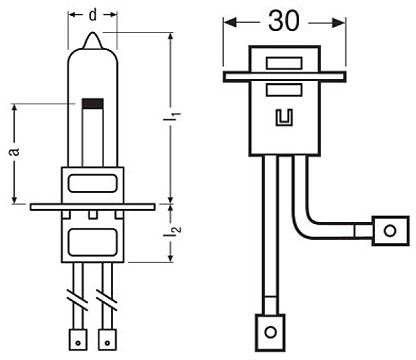

Osram 64317 Graphic

A = 16mm
D = 13.5mm
L1 = 36mm
L2 = 16mm
MOL = 56mm

Also available with female contacts 64318

Alternate Part Numbers: LIF J1/76, 64317C, NAED 58910, 45W-15, HLX 64318Z, 64319Z, HLX 64328Z, HLX 64341Z, NAED 58703, 58705, 4008321345493

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
