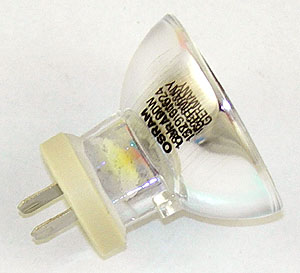

Osram 64624 JCR/M 12V 100W Lamp

Osram $17.10 Each

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Wattage: 100W, 100 Watts, 100 Watt
Voltage: 12V, 12 Volts, 12 Volt
Base: G5.3-4.8, G5,3-4,8, 2 Flat Pins
Average Rated Life: Osram 25 Hours
Burn Position: p90/15, Horizontal ±105°
Glass: MR11, MR-11, 35DICH, 35mm Diameter
Maximum Overall Diameter: MOD 35mm/1.375"/1⅜"
Maximum Overall Length: MOL 35.5mm
Typical Working Distance/Focal Distance: 26mm (Distance from front of glass to subject)
Coating: White
Filament: C-8, C8

Alternate Part Numbers: 54156, JCR/M-12V100W, 644358, 03624, A1/51, aR364626, 3021, 3961

Den Mat

Ceri-Light

Dentsply/Caulk

Prismatics-Lite

Faro

P287 Curing, P-287 Curing

Schultz Dental

Elcelux

S. S. White

Profile VCS

Sun Gun, SunGun

Pistol, Gun

Teledyne Getz

Getz Focus (UV Curing)

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
