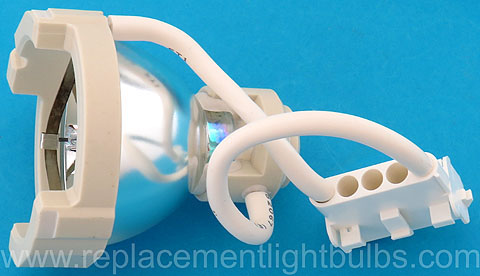

Osram VIP R 273/45 Digital Projector Lamp
VIP R 273/4569327
273WVIP R 270/45

Osram $216.00 Each

Lamps ordered will be shipped the next day by UPS or USPS Priority Mail. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Rated Lamp Wattage: 270W
Rated Lamp Voltage: 38V
Rated Lamp Current: 7.1A
Ignition Voltage: 30kV
Luminous Flux: 2,600 Lumens
Luminous Efficacy: 55 Lumens Per Watt
Average Luminance: 100,000 CD/CM²
Average Rated Life: 1000 Hours
Color Temperature: 5800°K
Color coordinates (x / y) 0.350 / 0.390

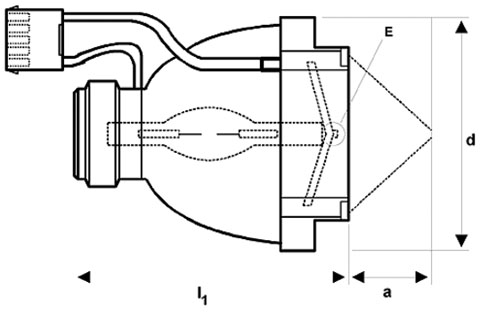

Electrode Gap: 1.9mm, E
Type of Reflector: Elliptical
Lamp Length: 73mm, I1
Lamp Diameter: 67mm, d
Mounting Distance: 45mm, a
Electrical Connection: Cable with AMP-plug No. 350810-1
Maximum Permissable Temperature: 250°C
Forced Air Cooling Required to Maintain Proper Temperature
Burning Position: Optical Axis Horizontal ± 15°, p 15

vip r 273/45vip r 270/45

Lumens and color temperature measured at working distance through an 5mm round aperture into an integrating sphere.

This lamp is discontinued with limited stock. This lamp is the same as the VIP R 273/46 except that the connector is different.

The OSRAM VIP R 273 / 45 is an AC discharge lamp, designed for data and video projection. Its small arc gap, combined with a high luminous flux and service life makes it suitable especially for small LCD and DMDTM (TM Texas Instruments) diagonales. The lamp is equipped with an elliptic reflector.

Alternate Part Numbers: 69327, VIP R 270/45, MH Metal Halide, 144/7697, 4093310-1, 4093312-1, 961900050A, 960531, 4084577-0006

Warranty: The lamp manufacturers no longer warranty front and rear projector lamps. We, at our expense, warranty these lamps for thirty days from the date of purchase should they fail prematurely due to a manufacturing defect.

For MD DLP Projection TV applications. LCD Computer Projector Lamp.

Anders & Kern

Astrobeam 110, 300, 320, 330

ASK Proxima

323079 & 323068
DP4000 Series
DP-4100, DP4100
DP-4100Z, DP4100Z
DP-4200, DP4200
DP-4200Z, DP4200Z
L80, L-80 Lamp Assembly
Pro AV 9100

Boxlight

4802

Davis

Powerbeam 4, 5, 6, IV, V, VI

Geha

Compact 590

Leisegang

DDV640
DDV800
DDV810

Lite Pro

Nview

D-400
D-405
D-450
D-455
D460Z
D705
Diamond Series
L-465 L
OP70

Polaroid

Polaview 222
