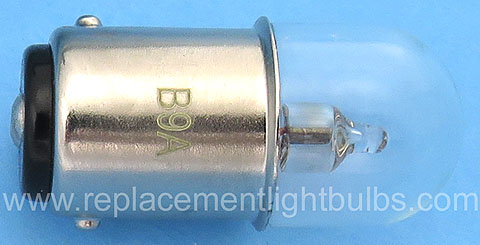

NE48/B9A Neon Lamp
Your lamp may look slightly different!
$2.00 each
Lamps ordered will be shipped the next day by USPS Priority
Mail or
UPS. Large orders may qualify for a discount and may not
qualify
for next day shipment. If you do not know what lamp you require or for
lamps not listed, email
your request or call 336-882-2854. To order, please use our online
order form, secure shopping cart below or call 800-692-3051.
Circuit Voltage: 110V, 105V to 125V
Amperage: 2mA, .002A
Wattage: .22W
Series Resistance: 30000 Ohm, 30K, Ext. Res. Reqd.
Base: BA15d Double Contact Bayonet
Glass: T4.5
Average Rated Life: 7,500 Hours
Maximum Overall Length: MOL 1.38"/35mm
Bulb Diameter: .59"/15mm
Lens End Plastic Cover
Replaces NE48H Neon Lamp
Alternate Part Numbers: 40022, NE48, NE-48, 05914A, GL1W
Equipment That Uses This Lamp
RCA-991
Testing equipment indicator lamp.
Judson Engine Synchronizer
Thorens
TD124 MkII met BTD12S arm en TP50 headshell
TD224
Cross reference information is designed to help you find the lamp you need for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp you need and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
