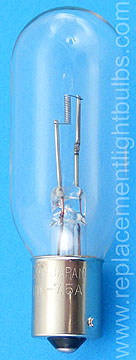

BXE 7.5A/T8/92SC 10V 7.5W 75W Base Down Sound Lamp
BXE 10V 7.5W 75W Base Down Sound Lamp, Replacement Light Bulb

$6.00 Each

This lamp is discontinued. Check stock here before ordering.

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Voltage: 10V, 10 Volt, Volts
Amperage: 7.5A
Wattage: 75W, 75 Watt, Watts
Base: BA15s Single Contact Bayonet, SC, S. C. Bay
Glass: T8, T-8, One Inch Diameter Clear Glass
Filament: C-8, C-8Z, 1.8mm x 4.6mm
Maximum Overall Length: MOL 3.12" or 79.2mm
Maximum Overall Glass Diameter: 1" or 25.4mm
Light Center Length: LCL 1.75" or 45mm
Average Rated Life: 100 Hours
Lumens: 1700
Burn Position: Burn Base Down
Common Use: Sound Reproduction Lamp, Optical Comparator

Alternate Part Numbers: 7.5A/T8/SCB-10V, KE-096, 7.5A/T8/92SC, PH/7.5A/T8/92SC, Howe Richardson Scale, Sound Reproducer, 3186-23326, Eiko 00580, Ushio 1000100, GE 23326, 1620 Lumens, INC10V-7.5A, RAM Optical 50-2512-04, Philips Norelco BXE, S. E., Japan, Westinghouse, Jones & Lamson Comparators before 1980, 31966

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
