BXT 12V 100W Lamp
BXT 12V 100W A1/186

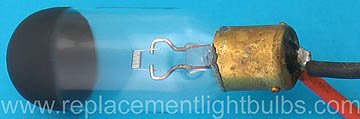

Your lamp may look slightly different!

$50.00 Each

This lamp is discontinued. Check stock here before ordering.

Lamps ordered will be shipped the next day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our online order form, secure shopping cart below or call 800-692-3051.



Click below to order using our secure shopping cart.

Voltage: 12V, 12 Volt, 12 Volts
Wattage: 100W, 100 Watt, 100 Watts
Glass: T8, T-8, One Inch Diameter Clear Glass with Opaque Top
Filament: CC6, CC-6
Lumens: 2600
Maximum Overall Length: MOL 3"/76.2mm
Maximum Overall Diameter: 1"/25.4mm
Light Center Length: LCL 1.5"/38mm
Average Rated Life: 25 Hours
Base: BA15s, SC BAY, Single Contact Bayonet
Color Temperature: 3300K, 3300°K, 3300 Degrees Kelvin
Burn Position: Burn Base Down

Alternate Part Numbers: Type 7238N/05, 111/77, PN140, PN 140, 58.8105, Syl-186, A1/186, Thorn J1

Equipment That Uses This Lamp

Agfa-Evaert, Inc.
Diamator-N12

Bauer
8mm T-10L, T-10S

Eumig
Phonomatic

Home Projector Cinema

Leitz Wetzlar
315725

Minox
Minotact
Minomat Slide Projector

Weimar
3 Projector

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
