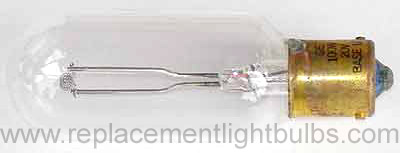

BZA Lamp

Your lamp may look slightly different!

$20.00 each

Lamps ordered will be shipped the next day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our online order form, secure shopping cart below or call 800-692-3051.



Click below to order using our secure shopping cart.

Voltage: 20V, 20 Volt, 20 Volts
Wattage: 100W, 100 Watt, 100 Watts
Glass: T8, T-8, One Inch Diameter Clear Glass
Filament: CC6, CC-6
Lumens: 2600
Maximum Overall Length: MOL 3"/76.2mm
Maximum Overall Diameter: 1"/25.4mm
Light Center Length: LCL 2.19"/55.6mm
Average Rated Life: 50 Hours
Base: BA15s, SC BAY, Single Contact Bayonet
Color Temperature: 3300K, 3300°K, 3300 Degrees Kelvin
Burn Position: Burn Base Up

Alternate Part Numbers: GE fg828x1, GE100T8/1SC, EXCY, Omega 471-021, 100T8/1SC, 100W-20V, S.C., 20V100W, 100W20V, Eiko 49638, 20-100-04, Ushio 8000044, Ophthalmic, T72-51, VE-66, 471-021, 100T8/1 SC

Equipment That Uses This Lamp

Nuarc
CP-25 CP25 Graphic Arts 100W

Picker
Collimator, Columnator

Simmon Omega
Automega D-4 D4 Auto-Chromega Enlarger, Photo Printer
Early non-dichroic Chromega Enlargers

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
