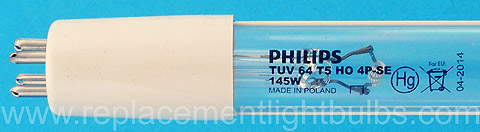

Philips TUV G64T5/HO/4P/SE 145W High Output Germicidal UV-C Lamp Replacement Light Bulb
About 61.5" Including Pins
*Discontinued - 25 Remaining In Stock
Lamps ordered will generally be shipped the next business day by USPS Priority
UPS, check here for Shipping Information. Large orders may qualify for a discount and may not
for next day shipment. If you do not know what lamp you require or for
lamps not listed, email
your request or call 336-882-2854. To order, please use our secure
shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Wattage: 145W, 145 Watt Watts
Amperage: .8A, 800mA
Glass: T-5, T5 Clear, UV Transmitting Glass
Base: G10Q, 4 Pin, Single Ended
UV Emission: 254nm, Typical Use 253.7nm, Nanometer Wavelength
UVC Output: 48W
Maximum Overall Length: 64"
Sample Measured Length Including Pins: 61.375"
Face to Face Length Excluding Pins: 61.16"
Radiation Length: 58.56"
Average Rated Life: 9,000 Hours
Mercury Form: Hg 8mg Amalgam
Lamp emits UV rays of 254nm and can kill most germs and
microorganisms. Emits no ozone.
If you replace the lamp and it does not work then most likely you need a new starter. Since starters are inexpensive and shipping is relatively expensive it my be a good idea to see what starter your unit uses, if any as sometimes the starting is a function of the ballast, and add a starter or two to your order. Not all fixtures use a starter. Sometimes the start function is built into the ballast. A ballast is more expensive and harder to find.
Alternate Part Numbers: Philips 392001, 39200-1, TUV 64 T HO 4P SE, 64T5, UV Resources 55084551
Germicidal lamps are clear with
special UV transmitting glass.
For use in sterilizers and air and water purifiers.
This is an ultraviolet C (253.7 nm wavelength) bulb for use in
sterilization, water and air purification and surface disinfection.
Used in the Forming and Disinfection of Contact Lenses. Used in UV
Sterilizers for Fish Aquariums and Ponds. Fixed wavelength
spectrophotometer detector. Germicidal lamps allow 253.7nm UV-C
radiation from the mercury discharge to pass through the glass thus
penetrating and inactivating the DNA of most micro-organisms.
Avoid direct exposure of eyes and skin under germicidal lamps. To
prevent possible serious injury, eyes and skin should not be exposed to
direct or reflected ultraviolet power emitted by this lamp. This lamp
is in Risk Group 3 per ANSI/IESNA RP-27.3-96. Adequate protection
should be provided by clothing, gloves, opaque materials, and ordinary
window glass. Although this lamp will operate in standard fluorescent
fixtures, it should not be used for general lighting applications.
Go to our Germicidal Safety Sheet for
more lamp handling details.
Note: This lamp contains Mercury. Manage in accord with disposal laws.
Germicidal fluorescent light bulbs are most often used with specialty
air and water purification systems in hospitals, food handling, and
HVAC. Applications include food processing, medical facilities, air
conditioning systems, pharmaceutical production, clean room, drinking
water, photochemistry, phototherapy, dermatology, wastewater,
laboratory/research, and other sterilization and disinfection needs.
For use only in fixtures and equipment designed for germicidal lamps.
Cross reference information is designed to help you find the
correct lamp for your application. We do not verify the accuracy of
this information. You are responsible for ordering the correct lamp and
we make every attempt to help you in that process. We recommend that
you confirm the information with the equipment manufacturer before
