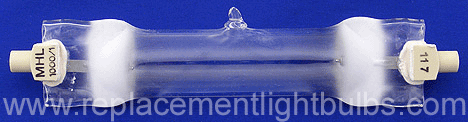

GW114, MHL-1000/1 1200W Exposure Lamp
GW114 MHL 1000/1

Ushio $42.00 Each

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Wattage: 1200W, 1200 Watt, Watts
Voltage: 135V
Base: AY05, RCS, R7s, RX7s
Maximum Overall Length: 147mm
Bulb Diameter: 23mm
Arc Length: 68mm
Burn POS:  HOR +10 degrees
Special Spectral UV Range: 350-370nm
Average Rated Life 500 Hours

Commonly used for photo-polymer screenprint plate burning. Also used for blacklight special effects. Use only in UV protective housing.
Graphic Arts Platemaker, Plate Maker

Alternate Part Numbers: GW-114, Item #21652, 5000062, 1406-06, N1000SP, VIP18, VIP18-2, FTLEX2,  900608, H3T7/OF/NA, 1000W, 702004, Amerigraph HID 10888, 1.2kW, Hg, WM6E, H3T7/OF/NAFT18V-1, Burgess/Ascor, Berkey, Pako, 10431, PAGA 1000/1, PAGA1000/1


V28-1000 , V28-1200 , V43-1000 , V43-1200


Advantage Screen Exposure System 150
HID-10888, HID-1888, MF CE WM6E, 708002




HP114A00 for Photopolymer


Q725 for Photopolymer


JGMH1060-0 for Photopolymer


GW-114 Mercury Plate Burner
26-1K, 26-1KSP, 26-1k Mercury Exposure System 26 1k-BLC 271L84-009
32-1K , 32-1KSP
40-1K, 40- 1KSP, Mercury Exposure System
FT-18V-1, FT-18V-2
FT26V-1, FT26V-2
FT26VNS-1, FT26VNS-2
N750-1, N750-2
N1000-1, N-1000-1, N1000-2, N-1000-2, N1000SP
NCP22, NCP28
VIP18 , VIP18-2 , VIP26 , VIP26-2 , VIP26NS , VIP26NS-2




10431 for Photopolymer
EX1000 , FX1200 , FX2400 , JA2547 , PXM2411 , PXM2412 , REGENCY II , RP2411, 10431

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
