M-04022 12V 60W Lamp
M-04022 12V 60W 380018-2520

*Discontinued by Hikari- No Remaining Stock

We are having these manufactured with expected delivery Fall 2019

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 60W, 60 Watt, 60 Watts
Voltage: 12V, 12 Volt, 12 Volts
Amperage: 5A
Glass: G40, G-40, 40mm, Clear, G12.5
Base: BA20d, 20mm Double Contact Bayonet
Average Life: 100 Hours
Filament: FC-6Z
Lumens: 1000
Maximum Overall Length: 68mm
Maximum Overall Diameter: 40mm
Light Center Length: 38mm

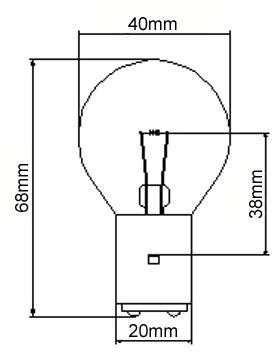

M-04022 12V 60W Graphic

Alternate Part Numbers: IL, Zeiss Microscope, IR8, 380018-2520-000, 380216, ICM 405, IM 35 Inverted Microscope, IM Inverted Microscope, Standard WL, UEM microscope, Universal, Universal research microscope, OPTIQUIP 348, 12-060-05, Formerly 380216 Gray Colored Microscopes in Lamp Housing 467257 and 468015, Photomikroskop III IM, IM 35, ICM 405, Axiomat UEM, ACM, CZ Universal, 348, LEICA 500010 , TSL 12V-60W 485

Typical Application: Dental, Medical, Microscope, Examination, Slit Lamp





Carl Zeiss

IM35, IM-35

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
