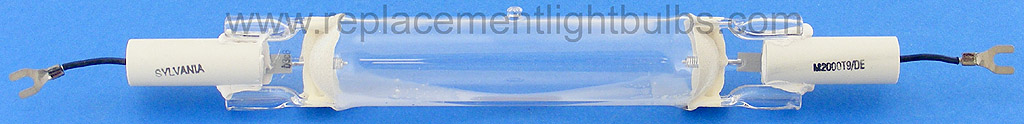

Sylvania M2000T9/DE 66631 2000W Lamp
Sylvania M2000T9/DE 66631 2000W Lamp, Replacement Light Bulb

Discontinued with No Substitute Available

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.



Nominal Wattage: 2000W, 2000 Watts
Nominal Voltage: 250V-Ballast Driven
Ignition Voltage: 4-5kV
Lamp Current: 8.5A
Base: Ceramic #8-10 Spade
Glass: T9, T-9, T29, T-29mm
Color Rendering Index: CRI 65, RA=65+
Color Temperature:: 4200K
Ballast Required: M134/F Special Control
Initial Lumens: 180,000
Mean Lumens: 153,000
Maximum Bulb Diameter: 1.14" or 29mm
Maximum Overall Length: MOL 10" or 254mm
Arc Length: 4.25" or 108mm
Light Center Length: 5" or 127mm
Average Rated Life: 3000 Hours
Burn Position: Horizontal ±4° of Horizontal
Warm Up Time: 2-4 Minutes
Hot Restrike Time: 5-10 Minutes
Maximum Seal Temperature: 350°C
Maximum Base Temperature: 450°C
Maximum Bulb Temperature: 950°C
Technology: HID High Intensity Discharge, MH Metal Halide

Use in equipment where gasket material is protected from all lamp radiation.

Enclosed luminaire with UV filter and lens interlock required. WARNING: This lamp emits ultraviolet radiation which can cause serious skin burn and eye inflammation. Additionally, this lamp operates under high pressure at very high temperatures. Should the lamp break there can exist a danger of personal injury and/or fire from the broken lamp particles being discharged. This lamp should only be used in fully enclosed luminaire with ultraviolet (UV) filter tempered glass lens capable of containing any particles discharges by breakage. Do not use this lamp if the filter lens is damaged or missing. This lamp should only be used in luminaires equiped with safety interlock lens switches. See lamp warning.

Alternate Part Numbers: Sylvania 66631, Osram 93-M2000T9/DE-OS, 04-D1, Metalarc, Double Ended, M2000T9DE, LEDVance, BriteLine, 66631-S, UPC 046135666315, SY66631, 66631-SYL, 66631-1, GE MQI/2000/T9/40, U134, MQI2000T9/40

Ball Park Lighting, Sports Lighting, Playing Field

GE Ultra Sport Sports Lighting Systems Outdoor Ultra Floodlight, ULTS, ULTK, ULTO, ULTT, ULTI, ULTR, ULTS02MSAM02P

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
