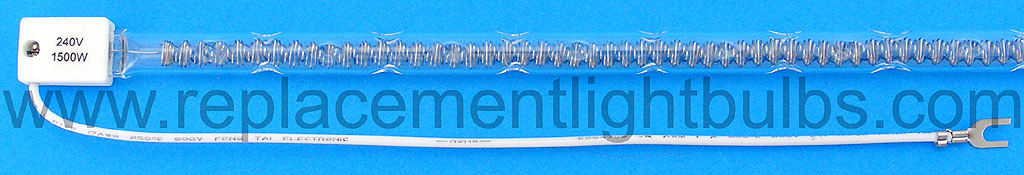

QH1500T3-240V SK15 1500W Quartz Heater Lamp
QH1500T3-240V SK15 1500W Quartz Heater Lamp

Overall Length 19.75"

Victory $27.00 Each

Lamps ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Wattage: 1500W, 1500 Watt, 1500 Watts
Voltage: 240V, 240 Volt, Volts
Base: SK15 Flexi Ceramic Base with 9" PTFE 17AWG Insulated Wire Leads with M4 Fork Terminal
Glass: T3 Clear, 10mm Diameter
Maximum Overall Length: MOL 19.75", 502mm
Color Temperature: 1800°K, 1800K
Burn Position: Universal
Average Rated Life: 5000 Hours
Filament: NDA Special Filament for Instant Heat
Infrared Medium Wave Quartz Heat Lamp
Flash Cure Infra-Red

64231024 Graphic

A = 501±2mm
B = 461mm Nominal
C = 230±5mm
E = 15.1mm
F = 10.5mm
G = 435mm Nominal
H = 5mm Maximum

Typical Use: Drying Water Based Inks, Offset Litho, Wood Treatment, Wallpaper, Shrink Wrap, Blow Moulding, Thermoforming, Screen Printing on Textiles

Alternate Part Number: QH1500W-240V-SK15, 64241524

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
