HCB-30 BA15d Double Contact Bayonet Lamp Socket
HCB-30 Double Contact Bayonet Lamp Socket, Mitronix

HCB-30-6" 18AWG Wires $1.52 Each

HCB-30-24.25" 18AWG Wires $1.82 Each

Sockets ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Base Type: DC, Double Contact Bayonet
Maximum Voltage: 125V
Maximum Wattage: 500W
Insulator: Ceramic
Spring: Stainless Steel
Connection: 1/8 IPS Male Nipple
Body Material: Steatite
Contacts: Stainless Steel
Wire: UL3135 18 AWG 200C, 18AWG White
UL Approved

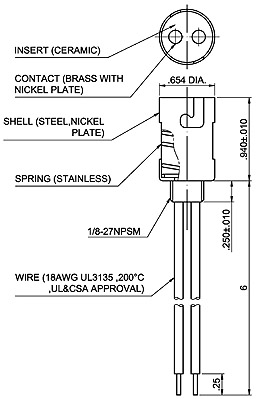

HCB-30 DC Graphic

Alternate Part Numbers: LR, RL, Halogen Lampholder, Incandescent, Cooper SK-028-40
