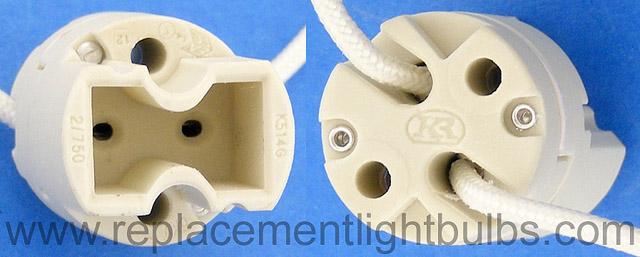

K514G G8.5 750V 660W 5kV 2/750 Lamp Socket
K514G G8.5 750V 660W 5kV 2/750 Lamp Socket

Kang Rong $5.50 Each

Sockets ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Base Type: G8.5, G8,5
Maximum Voltage: 750V
Maximum Wattage: 660W
Body Material: Steatite
Contacts: Stainless Steel
Wire Leads: 12" 18AWG, Braided Sleeve
Inserted wire should be 6mm long and .5 to 1mm thick.
Center of Hole to Center of Hole Mounting Distance: 14mm

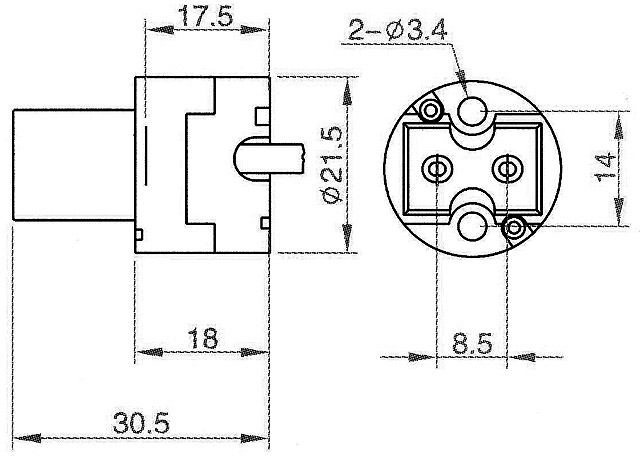

K514G G8.5 Graphic

Possible Substitute for VS Vossloh-Schwabe 502394, 336, 33600, LCP, Black, T260, 2/500/5kV, CuNiZn, Fixing Holes for M3 Screws

Alternate Part Numbers: KR, 12, 14, Lampholder, Light Bulb Socket, 270 Volt
