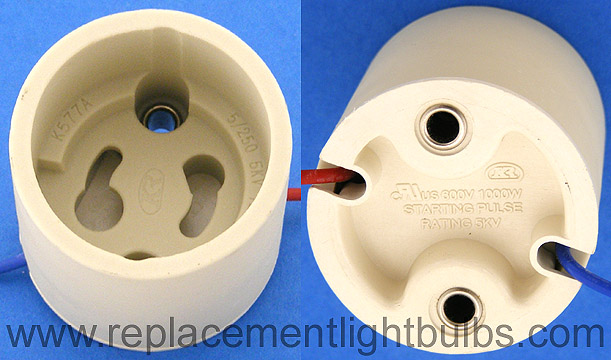

K577A PGZ18 600V 1000W 5kV Pulse Rating Lampholder Lamp Socket
K577A PGZ18 600V 1000W 5kV Pulse Rating Lampholder Lamp Socket

1,766 In Stock

18" 18AWG Wire $8.67 Each

Sockets ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Base Type: PGZ18
Maximum Voltage: 600V
Maximum Wattage: 1000W
Starting Pulse Rating:: 5kV
Housing: Steatite
Contacts: Brass
Cover LCP
Rivets: Nickel Plated Brass
18 " 18AWG 250°C PFA
Meets RoHS Requirements
UL: E159368
Alternate Part Numbers: K577A02, T270, 5/250
Typical Application: PGZ18 HID Lamp, CDM Elite, TMW 315W

Special Note: PGZ18 lamps are for enclosed fixtures only and have T-9 glass. PGZX18 lamps can be used for open or enclosed fixtures and have T-12 glass. In testing both the PGZ18 and PGZX18 lamps fit in the K577A socket. The K577A socket is designed for PGZ18 lamps and if you are using PGZX18 lamps it might be best to test a socket before buying in quantity, there may be an exception we have yet to discover.

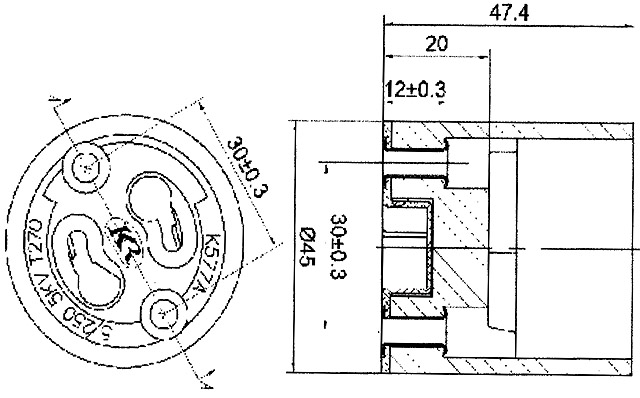

K577A Graphic
