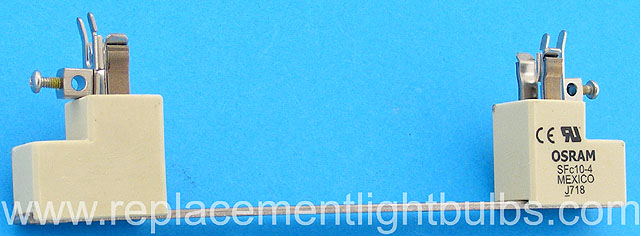

Osram SFc10-4 1000V 1500W 25kV 115mm Pulse Rated SharXS HTI Lamp Socket
Osram SFc10-4 1000V 1500W 25kV 115mm Pulse Rated Lamp Socket

*Osram $35.00 Each

*Discontinued-42 Remaining In Stock

Sockets ordered will be shipped the next business day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Maximum Voltage: 1000V
Maximum Wattage: 1500W
Pulse Rated: 25kV
Base: Double Ended SFc10-4 with Keylock for Pre-Focus
Lamp Spacing: 115mm
Overall Length: 148.6mm ±1.5mm
Maximum Operating Temperature: 250°C
UL Recognized: E31557
CSA Certified: LR20904
Body Material: Steatite
Contact Material: Nickel Plated Nickel
Typical Use: All SharXS HTI Lamps

Alternate Part Numbers: Osram Sylvania 69004, 69028, 69019, Double Ended, Mexico, J718, LR, CE, F511939

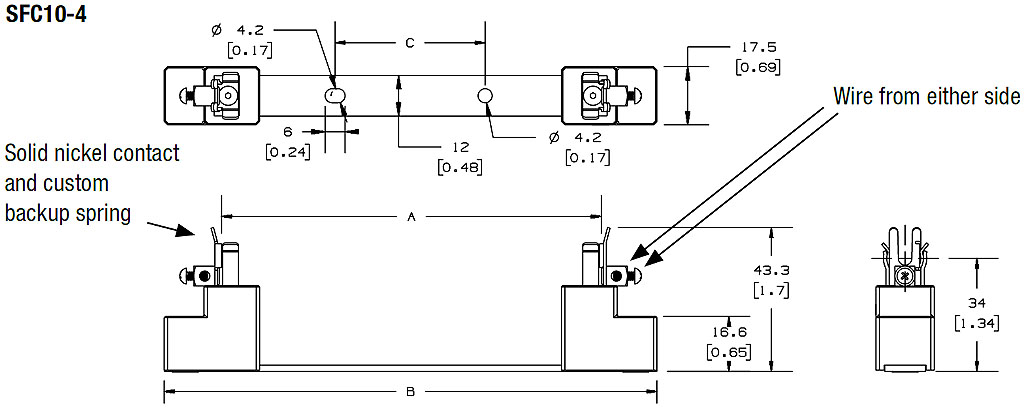

Graphic SFc10-4 Socket
