Osram XBO R 300W/60C Fiber Optic Light Source

Osram XBO R 300W/60C Fiber Optic Light Source

Osram $654.00 Each

Lamps ordered will be shipped the next day by USPS Priority Mail or UPS. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart above or call 336-882-2852 or 800-692-3051. Click to go to our Home Page, View Cart and to find Shipping Information.

Wattage: 300W, 300 Watt Watts
Voltage: 17V
Amperage: 16A, Control Range 15-19A
Glass: T17 Bulb, With Reflector
Base: Special Plug
Average Life: 1000 Hours When Burned Horizontally
Maximum Overall Length: 80mm
Maximum Overall Diameter: 82mm or 3.23"
Beam Angle: 30° Maximum
Color Rendering Index: CRI 95
Color Temperature: 6200K, 6200°K
Maximum Base Temperature: 250°C
Burn Position: P20, Horizontal ±20°
Typical Working Distance: 60mm
Forced Cooling Required
Short Arc
Hot Restrike, Restart
DC Current
Xenon Gas
MSDS
Troubleshooting
Safety and Handling

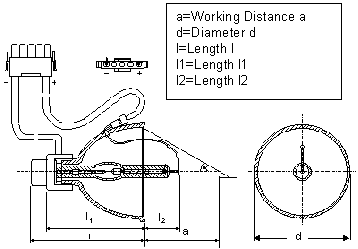

XBO 300W Graphic
A = 60mm, D = 82mm, L = 80mm, L-1 = 62mm, L-2 = 30mm

Alternate Part Number: XBOR300W60COFR, XBO R 300 W/60C OFR, 69167

Equipment that uses this lamp: Lightguide, Boroscopy, Fiber Optic, Minimal Invasive Surgery, Endoscopy, UV-A Adhesive Curing, UVA Dental Curing

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
