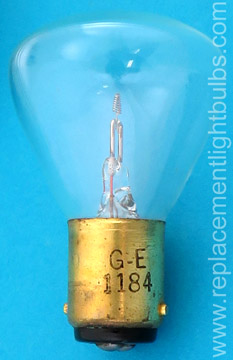

1184 5.5V 6.25A 50CP BA15d RP11 Light Bulb Replacement Lamp
48 In Stock
$1.00 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Wattage: 34.4W
Voltage: 5.5V
Amperage: 6.25A
Base: Double Contact Bayonet, BA15d, D. C. Bayonet, DC Bayonet
Center Beam Candle Power: MSCP 50, 50CP
Glass: RP11, RP-11
Filament: C-2V
Maximum Overall Length: 2.25" or 57.15mm
Maximum Overall Diameter: MOD 1.38" or 35mm
Light Center Length: LCL 1.25" or 31.75mm
Average Rated Life: 100 Hours
Burn Position: Base Down to Horizontal
Typical Use: Microfilm, Searchlight
Special Note: Designed to operate at currents of 1.9mA or greater AC or DC
Alternate Part Numbers: GE1184, S1184, S-1184, ML1184, E-1184, CM1184
Griscombe Microfilm Reader PA
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
