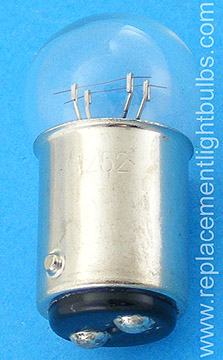

1252 28V 3CP Dual Series Filaments BA15d Light Bulb
1252 28V 3CP Dual Series Filaments BA15d Light Bulb

10,477 Remaining In Stock

63¢ Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Voltage: 28V For 24V Applications
Wattage: 6.44W
Amperage: .23A, 230mA
MSCP: 3CP
Lumens: 38
Filament: C-6/C-6, 2C-6
Maximum Overall Length: 1.44" or 36.6mm
Maximum Overall Diameter: .75"or 19.1mm
Light Center Length: .75" or 19.1mm
Average Rated Life: 2000 Hours
Glass: G6, G-6 Clear
Base: BA15d, Double Contact Bayonet, DC
Typical Use: Airplane, Aircraft, Instrument, Auto

Alternate Part Numbers: Satco E1252, Sylvania S1252, GE 27097, Wagner W1252, JKL1252, CM1252, Eiko 40244, 2C-2V, SR1252, GE1252, Two identical supported filaments in series, Allen Bradley AB 855T-L24, NSN 6240-00-019-0878, DLA400-88-D-0024, E-1252, Elevator A484L13

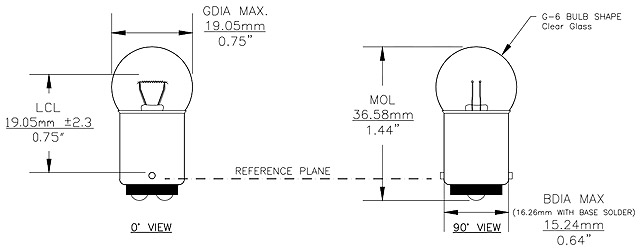

1252 Graphic

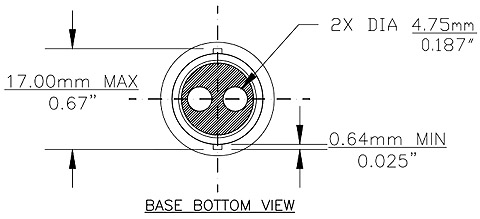

BA15d Base Graphic

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
