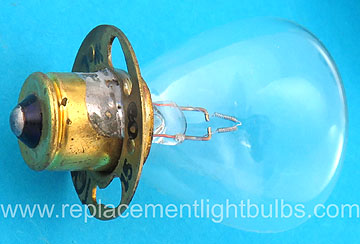

1509 12.8V 3.2A 41W Replacement Lamp Light Bulb
1509 12.8V 3.2A 41W Replacement Light Bulb

1,994 Remaining In Stock

$10.00 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Voltage: 12.8V, 12.8 Volt Volts
Wattage: 41W, 40.96W
Amperage: 3.2A
Lumens: 700
Candlepower: 56, 56C, 56CP
Filament: C-2V
Maximum Overall Length: 2.25" or 57.15mm
Maximum Overall Diameter: 1.42" or 36mm
Light Center Length: .875" or 22.23mm
Average Rated Life: 100 Hours
Bulb: RP11
Base: P30s, P15s30 Single Contact Prefocus, 15mm Post, 30mm Ring, P15s30B
Typical Use: Automotive, Filmstrip Projector, Microfilm, Ophthalmic Perimeter, Slide

Possible Substitute for Airmark Perimeter Bulb

Alternate Part Numbers: 71105, 15 09 WL TOP, 9020, CM1509, ML1509, NL1509, SR1509, SR-1509

Realist 3360 Swinger

University Microfilms 1212

Xerox XMPL Viewer

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
