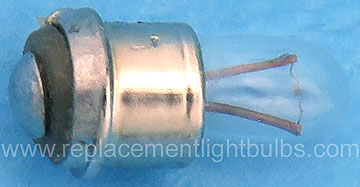

247 LA247 5V .06A Sub-Midget Flanged Base Replacement Light Bulb
24 Remaining In Stock
$3.00 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Voltage: 5V, 5 Volt Volts
Wattage: .3W, .3 Watts
Filament: C-6, C-2R
Maximum Overall Length: .367" or 9.3mm
Maximum Overall Diameter: .178" or 4.5mm
Light Center Length: .25" or 6.35mm
Average Rated Life: 5,000 Hours
Bulb: T-1 Clear Glass, 1/8" in Diameter
Base: SX4s Sub-Midget Flanged, Flange, F3-6
Amperage: .06A, 60mA
Candlepower: .15 CP
Lumens: 1.9
Alternate Part Numbers: LA247, NSN 6240-00-525-8854, 62405258854, 64205258854, 6240-525-8854, 820247000, 08108-6180, WL-6180, 6240-00-372-4785, 6180, 101130, 230, 2783033-9, 3019799-001, 6033680, 6400-6002-247, 825, 8559325-2, CM6180, CM6180AS15, OL-3071, PL6180, TYPE247
Los angeles class ssn (688); seawolf class ssn; helicopter, carrier based asw, SH-60F; trainer, B-1B aircraft; forrestal class cv; landing system automatic carrier, dual channel; aircraft, E-4B airbourne command post; nimitz class cvn; AN/SPN-42T-3, 42T-4 and AN/SPN-46(V) 1; aircraft, (AC-130H, MC-130H, EC-130E, HC-130); wasp class lhd; submarine interior communication system
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
