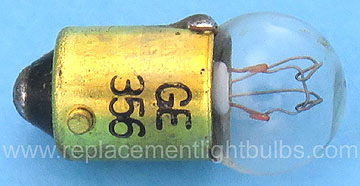

356 28V .17A 3.5CP BA9s Light Bulb
GE $1.00 Each - 104 Remaining In Stock
Sylvania $1.00 Each - 35 Remaining In Stock
Chicago Miniature 50¢ Each - 16 Remaining In Stock
Tungsram 50¢ Each - 1 Remaining In Stock
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Voltage: 28V
Amperage: .17A. 170mA
Wattage: 4.76W
Candlepower: 3.5 CP MSCP, 3.5CP
Lumens: 44
Base: BA9s, Miniature Bayonet
Glass: G3.5
Filament: C-2F, C2F
Maximum Overall Length: MOL .94" or 23.9mm
Maximum Overall Diameter: MOD .46" or 11.7mm
Light Center Length: LCL .5" or 12.7mm
Average Rated Life: 500 Hours
Note: This lamp is designed for a particular purchaser and may not be suitable for other uses because of it's excessive wattage requirements for the bulb size.
Alternate Part Numbers: Sylvania 35253-0, GE 40636, C-2V, 83124, NSN 6240-00-155-7866, CM356, CM356ENGLAND, General Instrument, SYL, T-S
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
