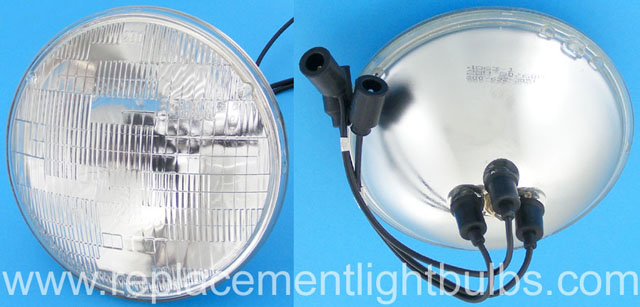

4863 28V 80/60W PAR56 Sealed Beam Lamp with Waterproof Leads
 Wagner 4863-1 4863 28V 80/60W PAR56 Sealed Beam Lamp, Replacement Light Bulb

2,560 Remaining In Stock

Import $23.73 Each

Case of 12 $237.24 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 80/60W Watt Watts
Voltage: 28V for 24V Systems
Glass: PAR56, PAR 56, PAR-56
Base: Three Contact Lugs with 9.5" Waterproof Leads, Packard Connectors
Filaments: C-6/C-6
Average Rated Life: 400/400 Hours
Maximum Overall Diameter: 7"
Maximum Overall Length: 5" Excluding Leads
Maximum Center Beam Candlepower: 24,000/11,000
Beam Spread: Hi/Low Dual Beam
Special Note: Minor Filament Shielded

Alternate Part Numbers: 4863, 6240-00-686-4168, MS18008-4863, M998 HMMWV, MFR 5A910, 87491, 19207-874491, 8741491, 6240-00-966-3831, 5591170-C, 6240PL0651422, 456720027809, 21599A, KE-4863, Rubber Leads

Used in virtually all Military Vehicles from Jeep's, 2 1/2T, 5T, & 10T M35 A2, Jeep M715, M35A2 2-1/2 Ton Military Truck, M939, Hummer, M809, HMMWV, HEMMT, P2, M35A2, M151A1, M35, M35A3, M109A3, M151, M715

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
