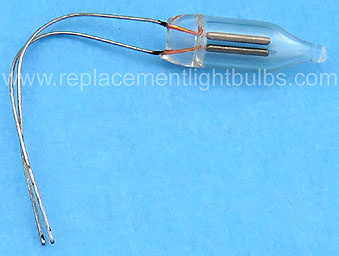

5AG-A NE-76 5AGA NE76 Neon Wire Leads Replacement Light Bulb
5 Remaining In Stock
$3.00 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Initial Maximum Breakdown Voltage: 68-76VDC, 72V Average DC Voltage
Initial DC Maintenance Voltage: 50-60VDC
Maintenance DC Voltage Change: 5VDC, 5V
Amperage: .0004A, .4mA DC
Nominal Wattage: 1/12W, .04W
Maximum Overall Length: .75" or 19.05mm
Maximum Overall Diameter: .25" or 6.35mm, .2 to .244"
Bulb: T-2 Clear Glass
Base: Wire Terminals, 1.5 Inch Leads, 1.5", Tinned
Resistance: 250K External Series Resistance Required
Average Rated Life: 2,000 Hours, Average after Burned for 100 Hours at Rated Current at 70VDC
Footcandles: 5-50
Technology: Neon
Typical Use: Indicator
Special Features: Dark Effect Reduced, Preaged
Special Notes: Bulb may shatter if proper external resistance is not used. Less than 10 microcuries of H3 per lamp.
Alternate Part Numbers: NE76, Neon Glow Miniature Lamp, CM NE-76, Wire Leads, T2 Glass, 5AG-A, 72V, .004A, 250K, 68-76V, 6240-00-539-8959, M15098/2-002
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
