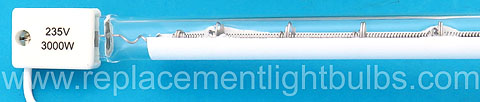

QH3000T3/RFL/SK15 235V 3000W 64233056 White Reflector Quartz Zone Heater Lamp
Measured Length 30-7/8" with 12" Leads
150 In Stock
Victory $31.50 Each
Recommended Replacement 6423305D
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Wattage: 3000W, 3000 Watt, Watts
Voltage: 235V, 235 Volt, Volts
Base: SK15 Flexi Ceramic Base with 12" 17AWG PTFE Insulated Wire Leads with Fork Terminals
Glass: T3.5 Clear with White Reflector, 10.8mm Diameter
Measured Length: MOL 30-7/8", 784.23mm
Maximum Overall Length: 785.5mm
Measured Heated Length: 28.25", 718mm
Minimum Heated Length: 715mm
Color Temperature: 2300°K, 2300K
Burn Position: Universal
Average Rated Life: 5000 Hours
Filament: CC-8
Infrared Quartz Heat Lamp
A = 785.5±2mm
B = 745mm Nominal
C = 304.8±5mm
E = 15.1mm
F = 10.5mm
G = 715±5mm
H = 5mm Maximum
Typical Use: Plastic Bottle Manufacturing, PET, Blow Moulding, PET/ALL, SIPA
Alternate Part Number: QH3000W-235V-SK15, Victory 64233056, IFR, QIR, QH3MT3, QIR235V-3000W, Dr. Fischer Philips 14107Z/98, 924536344216
Amsler Machine
Seidel Blowing Machine
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
