Wattage: 1600W, 1600 Watt Watts
Voltage: 277V
Base: 1.75" PTFE Insulated Wire Leads with Crimp M5 Ring Connectors
Glass: T3 Clear, 10mm Diameter, White Reflector
Maximum Overall Length: MOL 19.32" or 491mm Excluding Leads
Heated Length: 16"
Color Temperature: 2500°K, 2500K
Average Rated Life: 5000 Hours
Maximum Seal Temperature: 350°C
Filament: C-8
Burn Position: Universal

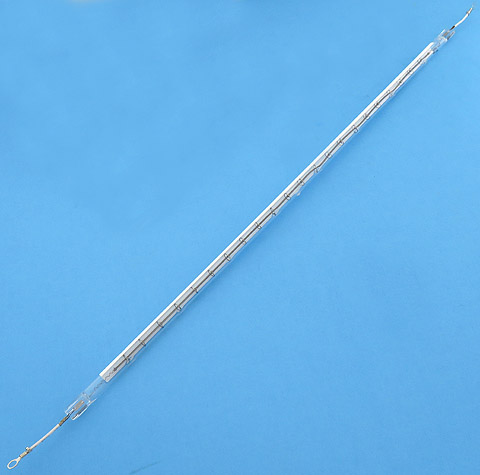

Halogen Infrared Quartz Heat Lamp
Reflector Coated 90 Degrees to Pinch Seal
Typical Use: Ink Drying On Boxes
Alternate Part Number: 64271653, QH1600T3/RFL-277V, PN-58474, 58474, DG10, XW IR 58474 BJ3, RLB J49
