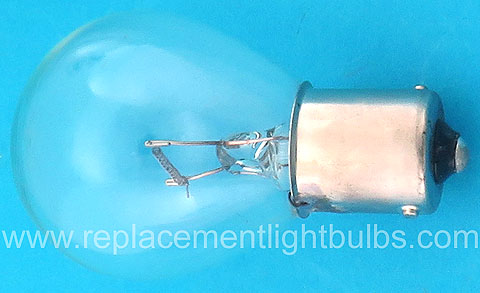

7669 24V 45W BA15s Light Bulb Replacement Lamp
28 Remaining In Stock
$10.00 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Voltage: 24V
Wattage: 45W
Amperage: 1.88A
Maximum Overall Length: 2.38" or 60.45mm
Maximum Overall Diameter: 1.38" or 35.1mm
Light Center Length: 1.25" or 31.75mm
Base: BA15s Single Contact Bayonet
Glass: RP11, S-11, S11, S35, S-35, S-35mm, Clear Glass
Filament: CC-6
Lumens: 900
Average Rated Life: 100 Hours
Typical Use: Automotive, Motorcycle, Marine, Signal, Papercutter, Flashing Revolving Strobe Lamps
Alternate Part Numbers: 15331, 39293, Fi.35x57, Stanley, Osram, Hella U2445, 170578, 1249, 13241, 233389-6, 5652906, 11025499, 1503.926.01, 2465162, 79070532, 50092698, 76515473, 14645, EA4688, 223554, 002074241, 082112, 812724, HB623 U, UHDCP1, 89901145, 00035331, 28304900, 50012742, 607015401, 607023108, 607023177, 6200011, 105008879, 81.25901.0041, 84.25901-0021, 49183, 6240-12-136-1126, 6240121361126, 17074241, 013161, 0530214, 5652906, 01391-011, 1391, LLB623, 1120, 8003001900004, SBC, LB7669, AS5824045
Lawson
Paper CutterCross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
