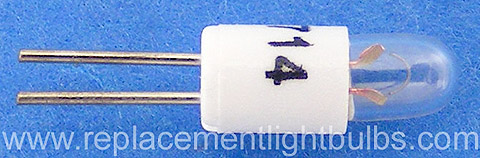

7714 5V .075A 75mA BiPin Light Bulb
7714 5V .075A 75mA BiPin Light Bulb, Replacement Lamp

1,070 Remaining In Stock

$1.00 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Volts: 5V
Watts: .375W
Amperage: .075A, 75mA
Average Rated Life: 25,000 Hours
Base: G1.27, .05 Bi Pin
Glass: T1, T-1, Clear
Filament: C-2R
Initial Lumens: 1.13
Candlepower: MSCD .09, .09CD
Maximum Overall Length: MOL .38" or 9.7mm
Maximum Overall Diameter: .13" or 3.2mm
Light Center Length: LCL .28" or 7.1mm
Base Material: Nylon or Equivalent
Typical Use: PC Boards
Technology: Incandescent

Alternate Part Numbers: Eiko 40946, 7714AS25, Bulbrite 751435, NSN 6240-00-481-5776, 111106, 150939-01, 3020001, 4018030127, 6825700-5003, 80-5400-54, CM7-714, CM7714, LTX7714, N56-00057, PL7714, S7714, ML-7714, JKL7714

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
