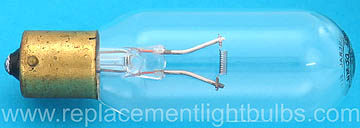

BXG 10V 7.5W 75W Base Down Sound Light Bulb Replacement Lamp
BXG 10V 7.5W 75W Base Down Sound Light Bulb Replacement Lamp

3 Remaining In Stock

$25.00 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Voltage: 10V, 10 Volt, Volts
Amperage: 7.5A
Wattage: 75W, 75 Watt, Watts
Base: BA15s Single Contact Bayonet, SC, S. C. Bay
Glass: T8, T-8, One Inch Diameter Clear Glass
Filament: C-6
Maximum Overall Length: MOL 3.12" or 79.2mm
Maximum Overall Glass Diameter: 1" or 25.4mm
Light Center Length: LCL 1.75" or 45mm
Average Rated Life: 100 Hours
Lumens: 1700
Burn Position: Burn Base Down
Common Use: Sound Reproduction Lamp, Optical Comparator

Alternate Part Numbers: General Electric, Marin, Ushio 1000101, GE, Westinghouse, BXG-10V, 7.5A/T8SC 10V

Good-All Electric Co.

Sound On Film
Semi

Kolograph Corp.

Kolograph 35mm Movie

RCA Corp.

Photophone M1-1156 to MI-1161

Weber Machine Corp.

Syncrofilm E, H

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
