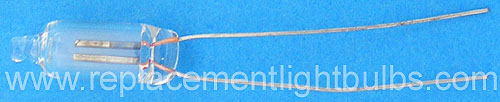

C2A, NE-2H 105-125V 1/4W 1.8mA T-2 Wire Terminal Base Neon Light Bulb
573 In Stock
50¢ Each
Lot of 10 $3.20
Lamps ordered will generally be shipped the next business day by USPS Priority
Mail or
UPS, check here for Shipping Information. Large orders may qualify for a discount and may not
qualify
for next day shipment. If you do not know what lamp you require or for
lamps not listed, email
your request or call 336-882-2854. To order, please use our secure
shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Volts: 105-125V
Watts: 1/4W, .25W
Amperage: 1.8mA
Average Rated Life: 25,000 Hours
Base: Wire Terminal, 1.25"
Glass: T2, T-2, Clear
Filament: Neon
Maximum Overall Length: MOL.75"/19.1mm
Maximum Overall Diameter: .25"/6.4mm
Typical Use: Glow Lamp, Orange Glow
Requires an External 30K Resistor To Operate
Alternate Part Numbers: Eiko 40024, UPC 031293400246, NE-2H, NE2H, 11941/3, 751535, 600300300994, 16M5558, 39101612, EK40024, 606-C2A-T, 751535, 70786510, 30710-0, 98737, 6240-00-731-5071, 210315, LIT1049, 889-6890
For DC operation of high brightness lamps use a minimum of 150 circuit volts. Maximum initial breakdown voltage 95 VAC, 135 VDC in light.
Cross reference information is designed to help you find the
correct lamp for your application. We do not verify the accuracy of
this information. You are responsible for ordering the correct lamp and
we make every attempt to help you in that process. We recommend that
you confirm the information with the equipment manufacturer before
ordering.
