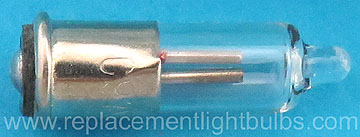

C9A NE-2J 105-125V 1/4W at 30K 1.9mA T-2 Midget Flanged Base Neon Light Bulb
C9A NE-2J 105-125V 1/4W at 30K 1.9mA T-2 Midget Flanged Base Neon Light Bulb

600 In Stock

$1.04 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Volts: 105-125V
Maximum Breakdown Voltage: 95VAC, 135VDC
Watts: 1/4W, .25W
Amperage: 1.9mA
Average Rated Life: 25,000 Hours
Base: SX6s S.C. Midget Flanged, Flange
Glass: T2, T-2, Clear
Filament: Neon
Maximum Overall Length: MOL.94" or 23.9mm
Maximum Overall Diameter: .25" or 6.35mm
Typical Use: Glow Lamp
External Series Resistance: 30K

Special Note: For DC operation of high brightness lamps use a minimum of 150V. Less than 3 microcuries of Kr85 per lamp.

Alternate Part Numbers: NE2J, Neon Lamp, NE-2J, Breakdown Maximum (AC) 95V, Breakdown Maximum DC 135V, 1.8mA, Sylvania 323850, 32385-0, 83332, NSN 6240-00-723-3378, GNSN 6240007233378

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
