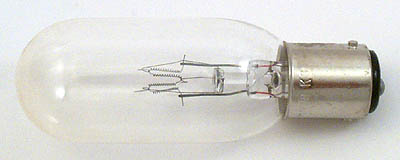

CAX 50W 120V or 130V Eyechart Projection Light Bulb Replacement Lamp
CAX lamp

Eiko CAX 115-125V $4.05 Each - 5 Remaining In Stock





Eiko CAX 130V $4.05 Each - 6,124 In Stock





Donar CAX 120V Halogen $5.85 Each - 309 Remaining In Stock





Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and $0.00.

Watts: 50W, Effective Wattage at 130V 45W
Volts: 115-130V
Filament: 120V-CC-13 or CC-2V, 130V-CC-2V
Base: BA15d, Double Contact Bayonet
Glass: T8, T-8, 1" Diameter Clear Glass
Average Life for Incandescent at Rated Voltage: 50 Hours
Average Rated Life for 130V Incandescent at 120V: 75 hours
Average Rated Life for 120V Halogen at 120V: 175 Hours
Average Rated Life for 130V Halogen at 120V: 500 Hours
Lumens: 775 with 120V, 600 Lumens with 130V
Color Temperature: 2875°K with 120V, 2775°K with 130V
Burn Position: Burn Base Down

Eiko Halogen CAX 130V Lamp Discontinued - Donar 120V Halogen in the Carts Above
CAX Halogen Lamp

Alternate Numbers: CAW/CAX, CAX/CAW, CAW-CAX, CAX-CAW, CAX130V50W, CAX120V50W, 50315, 50T8/22DC, GE 29169, GE 29171, Philips 266288, Reichert 11176, Osram NAED 58831, 33316-05

Possible Replacement: CAC

Typical Use: Projector/Acuity (Eye Chart) Projection, Optical Projection

Tel-A-Story Incorporated

Master, Narrator, Senior Slide Projector

AO/Reichert

1215, 1217 & 11082 Std POC
AO 1102 SER

RH Burton

Standard

Marco

CP-1 Std.

Topcon

CP-5D

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
