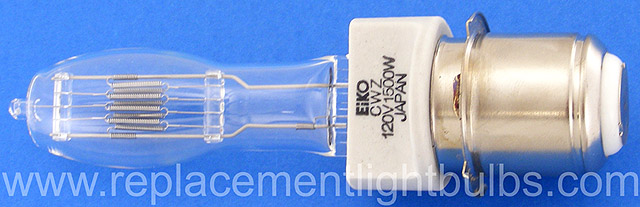

CWZ 120V 1500W Stage Lamp
CWZ 120V 1500W Stage Lamp, Replacement Light Bulb

Discontinued - No Remaining Stock- Possible Substitute DTA

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Voltage: 120V, 120 Volt, 120 Volts, 115-120V
Wattage: 1500W, 1500 Watt, Watts
Amperage: 12.5A
Base: P40s Single Contact Mogul Prefocus
Glass: BT-11, T-8, T-11
Average Life: 325 Hours
Lumens: 38,500
Burn Position: Universal
Filament: C-13D, C13D
Maximum Overall Length: MOL 7.5" or 190.5mm
Light Center Length: LCL 3.94" or 100mm
Maximum Overall Diameter: MOD 1.38" or 35mm
Color Temperture: 3200°K, 3200K
Technology: Halogen
Typical Use: Stage, Studio, Theater, Theatre, Fresnel, Searchlight

Possible Substitute DTA

Alternate Part Numbers: Eiko 01010, Q1500G40/21, Ushio 1000145, JCS120V-1500W, JCS120V1500W, 890-403, 120-500-66Z, Sylvania 12181, Colortran 176-193 176193, 75Q 8" Fresnel, 120V1500W, 1500T8Q4CLMO, BC1352, Grainger 6DZH8, Eiko 40138, GE 30526, Wiko, Thorn


8" Fresnel


Old 8" ERS


8" Fresnel

DEC, Distant Electric Control

19 Inch 3,614,000 Candlepower Searchlight CF-19SL8660A
24 Inch 6,431,000 Candlepower Searchlight CF-24SL8659A

Kliegl Bros.

Beam Projector 13124 4510


8" Fresnel For 1000W use BVT or BVV For 2000W use BVW


8" Theater Fresnel L0CWZ-000
NSI/Leviton 2K 8-Inch Theater Fresnel

Strand Lighting

12181 8" Fresnel Spotlight
8" Fresnelite
Fresnelite 1500 8-IN 1500W 120V

Times Square Stage Lighting Co.

Model #900

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
