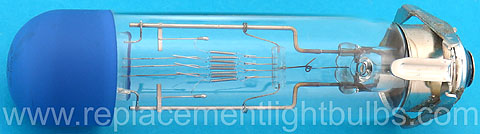

Westinghouse CZD 115-120V 400W Base Down Large Ring Light Bulb Projection Lamp
2 Remaining In Stock
$50.00 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Voltage: 120V
Wattage: 400W
Amperage: 3.33A
Average Rated Life: 25 Hours
Base: P46L, Bell & Howell Large Ring: 1.8" or 46mm in Diameter
Glass: T10 Clear with Opaque Top, 1.25" in Diameter
Filament: C-13D
Fil., C13D
Burn Position: Burn Base Down
Not all large ring bases look the same. Here are two examples of GE DAG lamps with different base styles. There are at least four variations.
Can Substitute for 500W DAG Lamp
Alternate Part Numbers: 120-125V, PH400, Lg. Ring Projection, Code-400T10/3LR-120V, L. I. Ring, PH/400T10/3LR, F 152 OP Proj, WestinghouseB&H Part No. 02117, 400 Watt, 120 Volt, Filmo, Projection, Westinghouse, 08109, Bell & Howell
Bell and Howell-B&H
173-BD2 16mmDiplomat 57V, 57W, 57X, 57Y, 57Z
Diplomat 173, 173B, 173BA, 173BAY 16mm Silent
Filmo Auditorium A, C, D, G, H 16-mm
Filmo Design 57 U
Filmo Diplomat A, AD, B, BD 16 mm
Filmo Statesman-All 273 Models
Filmosound-All 138 Models-16mm Sound
Filmosound-All 142 Models-16mm Sound
Filmosound-All 156 Models-16mm Sound
Filmosound 179 16mm Sound
Filmosound-All 185 Models-16mm Sound
Filmosound 202, 285, 398, 399 16mm Sound
Statesman 273, 273A- 16mm Silent
Triangle Projectors, Inc.
Model 1200, 1600 16mm Movie ProjectorCross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
