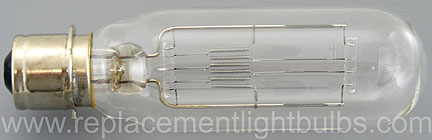

DRB/DRC 120V 1000W Light Bulb Projector Lamp
DRB DRC 120V 1000W Opaque Projector Replacement Lamp, Light Bulb

1,007 Remaining In Stock

$50.00 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 1000W, 1000 Watts, 1000 Watt
Voltage: 115-120V, 118 Volts, 120 Volt, 120 Volts
Base: MedPf/P28s, P28, 28mm Medium Prefocus, Med. Pref.
Filament: C-13, C13
Glass: T-20, T20 2.5 Inches in Diameter
Maximum Overall Length: 5.75 Inches, 146mm
Light Center Length: 2.188 Inches
Average Life: 25 Hours
Lumens: 28,000
Operating Position: Base Down, BD
Color Temperature: 3200°K

Modern replacement for the DRC/DRB lamp has smaller diameter T-14 glass in place of larger T-20 glass.
T14 Glass Version of the DRC

Alternate Part Numbers: 29968, 6240008416367, 6240-00-841-6367, 29979, PH/1M/T20/13P, 1000 Watts, 115V

Notes: Commonly Used in Overhead and Opaque Projection

American Optical Corp.

Opaque 3525, 3527
Overhead 3540, 3550
HS Opaque 1000 Model: 3625


OPA SCOPE model 20005 from Projection Objects, Inc. 120VAC 6HZ 9AMP MAX 1000W LAMP, 235D A.C. 60 HZ
Opascope 20000

Charles Beseler Company

Vu-Lyte III, model 12300, 12400
Da-Lite Vu-Lyte IV Opaque Projector
Vu-Lyte II
Projector, Still Picture AP-5(1), 115 Volts 1000 Watts AC Only
Opa - Scope Model 20005
Opa-Scope 20006
Da-lite vellyte5 Model 12400
Va-Lyte 2

Buhl Projector Co.

Koolite 6000, 7000

F and B/Ceco, Inc.

CECO Redlake 35mm Movie Projector

Kalart Victor Corporation, Neumade

93525, 3526 Editing/Viewing
Model 3525

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
