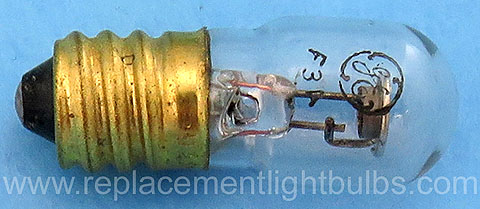

GE F3A NE57 NE-57 E12 30K Series Resistance Neon Light Bulb Replacement Lamp
3 Remaining In Stock
$25.00 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Neon Indicator
Circuit Voltage: 105V to 125V
Maximum Initial Breakdown Voltage: 65VAC, 90VDC
Nominal Current: 2A
Wattage: .25W, 1/4W
Resistance: 30K Series Resistance OHM's
Base: E12 Candelabra Screw
Glass: T4.5
Average Rated Life: 7500 Hours
Maximum Overall Length: MOL 1-17/32", 1.53125", or 38.9mm
Bulb Diameter: .56" or 14.3mm
Special Notes:
Center Electrode Connected to Base Shell
DC Starting Voltage is for Lamp Connected so that Center Electrode is Negative
In order to properly control the lamp current, a ballast resistor must be used. Lamps having screw bases have the necessary resistor built-in.
Alternate Part Numbers: NE57, 1/4W 105-125V, T4.5, Candelbra Screw Base, Clear, Neon, GE 31694, 63057
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
