FBG/FBD 120V 500W Light Bulb Replacement Lamp
FBG/FBD 120V 500W Light Bulb Replacement Lamp

524 Remaining In Stock

$30.00 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 500W, 500 Watt, 500 Watts
Voltage: 120V, 120 Volt, 120 Volts
Base: Min 2-Pin, Miniature Bi-Pin G5.3
Glass: G6, G-6 Clear, Globe Shaped .75" in diameter
Average Rated Life: 50 Hours
Initial Lumens: 13200
Color Temperature: 3200, 3200°K, 3200K
Burn Position: Base any position, but with filament coil axis horizontal
Maximum Overall Length MOL: 3"/76.2mm
Bulb Diameter, DIA, MOD: .75"/19mm
Light Center Length, LCL: 1.75"/44.4mm
Lamp Type: Halogen - Single-Ended

Alternate Part Numbers: Eiko 03040, GE 36203, 33663, 10043168336632, 043168336635

For 220-240V use FFX or FKX

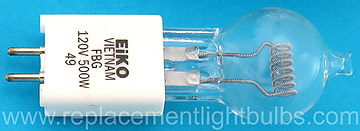

Does your lamp look like this?

This lamp is an FBD lamp which is discontinued and replaced with the globe shaped glass above. For most applications the FBG/FBD lamp is the perfect replacement. We have found that there are some transactions that the FBG/FBD does not fit because of the glass size. If you have one of these situations we may have old stock of the FBD.

Primary Application: Overhead Projection

Montgomery Ward, Montgomery Wards

816, 818 8mm Movie Projector


Nikkormat Autofocus Slide Projector for 2x2 Mounts, Super Slides 35mm and Smaller

Sawyer's Incorporated

Rotomatic 707Q 707-Q, 707AO, 707-AO, 707 AQ, 707A0, 707-A0 Slide/Filmstrip Projector
Rotomatic 400
Rotomatic 737 H-150, 500 W QI TPI Sylvania Style


K43 Kit, 765-UM Studio Lights

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
