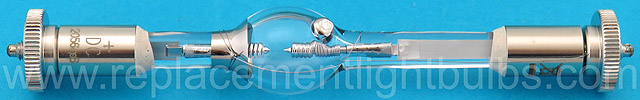

Osram 69163 HBO 200W/DC TM L1 200W Double Ended Mercury Short Arc Light Bulb
Osram 69163 HBO 200W/DC TM 200W Double Ended Mercury Short Arc Light Bulb

Osram $176.88 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 200W
Voltage: DC Operation, 57-65V Initial Electrical Values
Aperage: 3-4.3A
Base: SFc10-4 with 8-32 UNC-3 B Thread Both Anode and Cathode
Average Rated Life: 400 Hours
Lumens: 9,500
Rated Lumens: 9500
Average Luminance: 40000 cd/cm2
Luminous Intensity: 1000 CD
Luminous Area: .6mm x 2.2mm
Glass Shape: KO113
Glass Diameter: 17mm
Light Center Length: LCL 40mm
Coating: Clear
Maximum Overall Length: 128mm
Burn Position: Vertical Base Down, S20 Base Down ±20°
Typical Use: Microscope, Semiconductor, Microscopy, Laboratory & Analysis, UV Light Curing, Fiber Illumination, Microscopy, Solar Simulation, Contour Projection, Optical Comparators, Metrology, Microlithography, Stepper
Country of Origin: Germany

Recommended Replacement for Osram 69223 HBO200W/2/TM/L2

Alternate Part Numbers: Osram Sylvania 69163, 69163-1, HBO 200 W/DC L1, HBO200W/DCTML1, SFC10-4, 4008321137623, 4008321137630, HBO200W/2, 1XHBO200W/2, TML1, 69221-0, HBO200W/2TM L1, 1XHBO200W/2TM L1, Comparator OGP QL-20, QGPQL-20, 69193, 1XHBO200W/2

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
