Osram 69316 HBO 202W/4-L1 AC 200W Double Ended Mercury Short Arc Light Bulb
7 Remaining In Stock
Osram $300.00 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Wattage: 200W
Voltage: AC Operation, 61V
Aperage: 3.6A
Base: SFc10-4/SFc10-4
Average Rated Life: 200 Hours AC
Rated Lumens: 10,000
Average Luminance: 40000 cd/cm2
Luminance Intensity: 1000 cd
Luminous Efficacy: 50 Lumens Per Watt
Luminous Area: .6mm Wide, 2.2mm High
Glass Shape: KO113
Glass Diameter: 17mm
Light Center Length: LCL 40mm
End of Base to Tip of Electrode (Cold)
Coating: Clear
Cooling: Convection
Maximum Overall Length: 128mm
Burn Position: S45, S 45, Vertical Base Down ±45°
Typical Use: Microscope, Semiconductor, Microscopy,
Laboratory & Analysis,
UV Light Curing,
Fiber Illumination,
Microscopy,
Solar Simulation, Contour Projection, Optical Comparators, Metrology, Microlithography, Stepper, UV Curing
Country of Origin: Germany
Lamp same as HBO 200 W/4 (Product Number 69224) but with increased radiation in the wavelength range below 450nm for UV-curing.

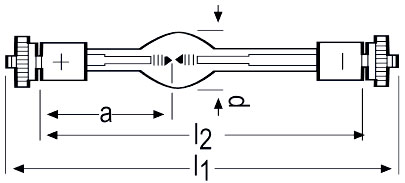

A = 40mm
D = 17mm
L1 = 128mm
L2 = 102mm
Alternate Part Numbers: Osram HBO 202 W/4, Stromart, AC, Osram 69316, 4050300507156, 6869 Y9
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
