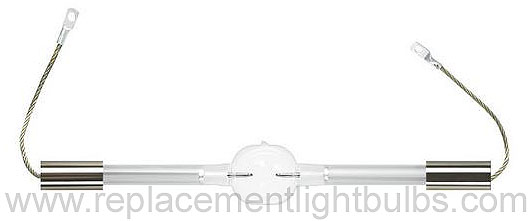

Osram HMI 12000W/DXS 54316 Xenon Lamp
Osram HMI 12000W/DXS 54316 Xenon Lamp

*$650.00 Each

*4 Remaining In Stock

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 12000 Watts
Operating Voltage: 240V
Rated Lamp Current: 84A
Current: AC
Maximum Overall Length: 470mm
Glass Diameter: 64mm
Cold Electrode Arc Gap: 25mm
Buring Position: P15, Horizontal ±15°
Lumens: 1,150,000
Lumens Per Watt: 96 lm/W
Light Center Length: 64mm
Average Rated Life: 500 Hours
Color Temperature: 6000K, 6000°K
Color Rendering Index: >90 CRI
Base: S30 Double Ended
Bulb Shape: R64X78/983
Reflector Coating: 64
Cooling: Convection
Gas Filled
Country of Origin: Germany
Application: TV and Video Production, Stage, Studio, Theater, Theatre, Solor Simulation

Alternate Part Numbers: Osram 54316, 160V, UPC 4008321210227, CE CSR 12000/DE, Ushio UMI 12000, SLI BA 12000 W DE, Koto DI-120, UPC 046135543163, Stromart, 54316-1, 10046135543163

ARRI Entertainment Lighting

Daylight 12000
Daylight 18/12 KW 12000W
Fresnel HMI12000

Desisti Lighting

Rembrandt 12000W
Rembrandt Piccolo 12000W

Mole Richardson

6291 Fresnel HMI Solarsp 12000
6301 Mole Solar-Arc HMI12000/GS
Fresnel HMI Solarspot 12000W
Mole Solar-Arc 12000W

Srand Lighting

Fresnel QTZCOLOR 20-IN
SIRIO 12KW 3890


Fresnel 20 12000HMI

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
