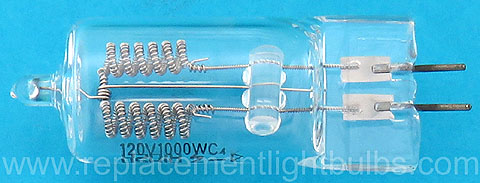

Ushio JCV120V-1000WC4 1000W 120V Light Bulb Replacement Lamp
Ushio JCV120V-1000WC4 1000W 120V Light Bulb Replacement Lamp

Discontinued - No Remaining Stock - No Recommended Replacement

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 1000W
Voltage: 120V
Amperage: 8.3A, F8,3A
Base: 2-Pin GX6.35
Glass: T7, T-7, Clear
Filament: 2CC-8
Lumens: 27,000
Average Rated Life: 100 Hours
Color Temperature: 3200°K, 3200K
Burn Position: Base Down to Horizontal
Maximum Overall Diameter: MOD DIA 23mm
Maximum Overall Length: MOL 67.5mm
Light Center Length: LCL 38mm

For 230V, 150W, 25 Hour, 4000 Lumens use 64502
For 120V, 300W, 15 Hour, 9500 Lumens use 64512
For 120V, 300W, 75 Hour, 7700 Lumens use 64514
For 120V, 1000W, 15 Hour, 33000 Lumens use 64573

Note: Do not use a higher wattage lamp without first confirming that your fixture and application will support the additional current and heat.

Alternate Part Numbers: Osram 64574, 64573, Ushio 1001822, 120V1000WC4, 109 285, 109285, 9951000, 99 51 000, JCV120V-1000WC, JCV120V-1000W, Superphot, JCV 120V-1000WC, P2/17, JCV-1004

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
