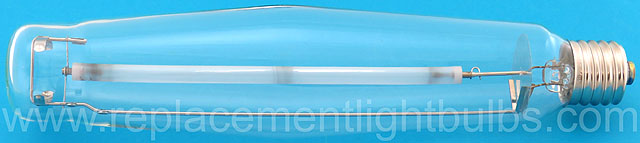

Sylvania Lumalux LU1000/PLUS/ECO 1000W S52 HPS Light Bulb Replacement Lamp
Discontinued - No Remaining Stock - No Recommended Substitute
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Wattage: 1000W, 1000 Watt Watts, 994W to 1071W
Voltage: 250V, Ballast Driven
Amperage: 4.7A
Arc Length: 8.12"
Glass: ED25, ET25, E25, Ellipsoidal
Base: E39 Mogul Screw
Average Rated Life: 30,000 Hours at 10 Hours Per Start
Initial Lumens: 130,000
Mean Lumens: 124,000
Color Temperature: 2100°K
CRI: 22
Maximum Overall Length: 15.08"
Diameter: 3.15"
Light Center Length: 8.74"
Burn Position: Universal
Ballast: S52 IEC 60922 and 60923
Country of Origin: Mexico
Special Notes: Plus is Non-Cycling
Typical Use: High bay, Low bay, Parking lot, Roadway fixture Cobra head, Wall mount
It is recommended that lampholders with nickel-plated copper alloy center contacts (with spring) should be used rather than electrical contacts made of stainless steel.
High Intensity Discharge, High Pressure Sodium
These lamps must be operated in fixtures designed for use with high pressure sodium lamps. The fixture wattage rating must match the wattage of the bulb to avoid shattering of hot glass.
LUMALUX PLUS/ECO non-cycling, high pressure sodium lamp and shall contain up to 90% less mercury than a standard high-pressure sodium lamp. Lamp shall include a lead-free brass base, shall pass the existing Federal TCLP limits and be rated for 30,000+ hour life. Lamp shall be a direct retrofit on existing ANSI designated ballasts of similar wattage of standard high-pressure sodium lamps and shall meet existing ANSI specifications for those corresponding wattages. Due to a gap in the tolerances between the ANSI lamp specification and the ANSI ballast/starter specification, the Cooper 220C1/3G11 (G11) starter is not compatible with LUMALUX PLUS lamps. Lamp shall remain off at the end of life and shall not cycle. For more information please contact your SYLVANIA representative.
Alternate Part Number: Sylvania 67316-3, 67316, LU1000/ECO, 046135673160, 10046135673167, Lumalux Plus, Ecologic, 67307
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
