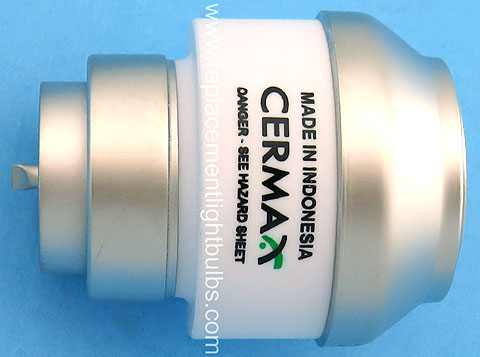

Excelitas Cermax PE300C-10FS 300W Pentax EPKi Light Bulb Replacement Lamp
Excelitas Cermax PE300C-10FS 300W Pentax EPKi Light Bulb Replacement Lamp

3 In Stock

Perkin Elmer $459.77 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 200-300W
Light Engine: Ceramic Xenon, Short Arc
Arc Gap: .045" or 1.14mm
Lumens: 7475
Color Temperature: 5900K, 5900°K
Reflector Type: Elliptical, f/1.0
Body Type: Ceramic
Total Visible Output: 7475 Lumens
Power - Nominal: 300 Watts
Power - Range: 200-300 Watts
Current - Nominal: 21 Amps (DC)
Current - Range: 13-26.5 Amps (DC)
Ignition Voltage: 23kV, 23 kilovolts (recommended minimum, system dependent)
Operating Voltage - Nominal: 12 Volts (DC)
Operating Voltage - Range: 11.5-15 Volts (DC)
Lifetime: 1000 Hours Typical, End of life is defined as 50% of initial output.
Temperature: 150°C (Maximum)
Radiant Output: 75 Watts
UV Output (<390 nm): 3.8 Watts
IR Output (>770 nm): 37 Watts
Reflector Geometry: Ellipsoidal 1= X2/M2 + Y2/N2
Window Diameter: 1" or 25.4mm

Specification Sheet

Only use this lamp in proper equipment with proper safety precautions.

Alternate Part Numbers: PE300C10FS, 57074, Perkin Elmer

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
