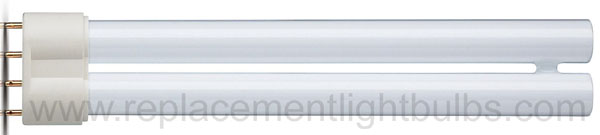

PL-L 18W/10-4P Actinic BL Reprographic UV-A Fluorescent Lamp
PL-L 18W/10-4P Actinic BL Reprographic UV-A Fluorescent Lamp

Philips $20.46 Each

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 18W, 18 Watt Watts
Glass: Duo-Tube, 2xT16
Base: 2G11 4-Pin
Ultra Violet A, UVA, Actinic BL, Black Light, Blacklight
Overall Length: 225mm, 8.58"
Average Rated Life: 15,000 Hours
Useful Life: 5,000 Hours
Depreciation 2000 Hours: 20%
Depreciation 5000 Hours: 35%
Voltage: 58V
Amperage: .375A Current
UV-A Radiation at 100 Hours IEC 3.5W

PL-L 18W Dimensions

A=195mm Max
B=220mm Max
C=225mm Max
D=38mm Max
D1=18mm Max

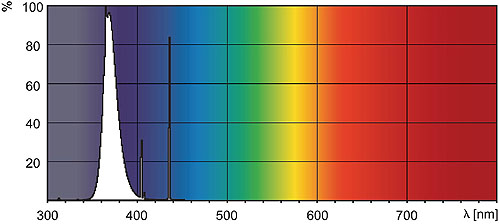

PL-L 18W/10-4P Light Characteristics Graph

Typical Use: Reprography, Photopolymerization, Electronic Insect Killer Systems

Alternate Part Numbers: 927907001007, PLL18W10-4P, Hygiea UVA F18 FSL PL-F18W

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
