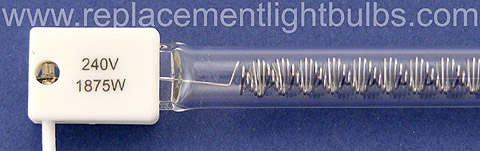

QH1875T3-240V/SK15 1875W Quartz Heater Lamp
Overall Length 503mm with 240mm Leads
316 In Stock
Victory $24.90 Each
Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.
Wattage: 1875W, 1875 Watt, Watts
Voltage: 240V, 240 Volt, Volts
Base: SK15 Flexi Ceramic Base with 9.44" 17AWG PTFE Insulated Wire Leads with 4mm Stripped Ends
Glass: T3 Clear, 10mm Diameter
Maximum Overall Length: MOL 19.81", 503mm
Color Temperature: 1800°K, 1800K
Burn Position: Horizontal
Average Rated Life: 5000 Hours
Filament: NDA Special Filament for Instant Heat
Infrared Medium Wave Quartz Heat Lamp
Flash Cure Infra-Red

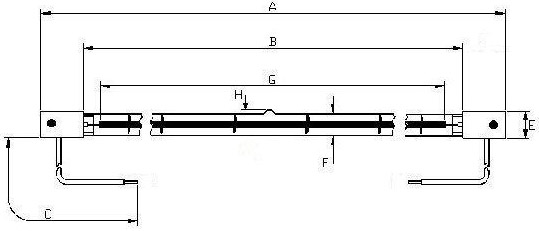

A = 503±2mm
B = 463mm Nominal
C = 240±5mm
E = 15.1mm
F = 10.5mm
G = 432±5mm
H = 5mm Maximum
Typical Use: Drying Water Based Inks, Offset Litho • Wood Treatment, Wallpaper • Shrink Wrap, Blow Moulding • Thermoforming • Screen Printing on Textiles
Alternate Part Number: QH1875W-240V-SK15, Victory 64241821, Fannon, V942, Z48, LIT435, 1875 IR Heater
Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
