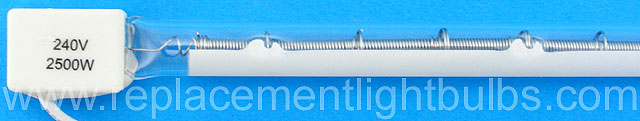

QH2500T3/RFL/SK15 240V 2500W Reflector Quartz Zone Heater Lamp
QH2500T3/RFL/SK15-240V 2500W Reflector Quartz Zone Heater Lamp

Maximum Overall Length 355.6mm with 230mm Leads

Victory $20.25 Each - 137 In Stock

GE 230V $35.00 Each - 9 Remaining In Stock

Lamps ordered will generally be shipped the next business day by USPS Priority Mail or UPS, check here for Shipping Information. Large orders may qualify for a discount and may not qualify for next day shipment. If you do not know what lamp you require or for lamps not listed, email your request or call 336-882-2854. To order, please use our secure shopping cart or call 336-882-2852 or 800-692-3051. Click to go to our Home Page and View Cart.

Wattage: 2500W, 2500 Watt, Watts
Voltage: 240V, 240 Volt, Volts
Base: SK15 Flexi Ceramic Base with 9" 17AWG Insulated Wire Leads with 8mm Crimp Terminals
Glass: T3 Clear with White Reflector, 10mm Diameter
Maximum Overall Length: MOL 14", 355.6mm
Color Temperature: 1800°K, 1800K
Burn Position: Horizontal
Average Rated Life: 5000 Hours
Filament: CC-8
Infrared Quartz Heat Lamp
Infra-Red Zone Heater

64231024 Graphic

A = 354±2mm
B = 311mm Nominal
C = 230±5mm
E = 15.1mm
F = 10.5mm
G = 256±5mm
H = 5mm Maximum

Typical Use: Plastic Bottle Manufacturing, PET, Blow Moulding

Alternate Part Number: QH2500W-240V-SK15, Victory 64242550, IFR, QIR, QH2500T3, QIR240V-2500W, 170 White Reflector, High Temperature, QH2.5MT3/CL/HT/R, GE 89375, QH2.5MT3HT/R-230

Seidel Blowing Machine

Cross reference information is designed to help you find the correct lamp for your application. We do not verify the accuracy of this information. You are responsible for ordering the correct lamp and we make every attempt to help you in that process. We recommend that you confirm the information with the equipment manufacturer before ordering.
